Morse Micro Wi-Fi HaLow

Elevating Wi-Fi to New Heights

Long Range, Low Power, and Massive Capacity Wi-Fi

Morse Micro offers the complete Wi-Fi HaLow connectivity solution through its MM6108 SoC, a single-chip solution encompassing Radio, PHY, and MAC components in adherence to the IEEE 802.11ah standard. With data rates up to 43.3Mbps, it operates within sub-1 GHz license-exempt RF bands on a global scale. The MM6108’s RF interface provides flexibility, enabling a choice between on-chip amplification for cost-effective solutions or external power amplifiers (PA) and Front-End Modules (FEM) for Ultra-Long-Reach applications. Its RF receiver’s exceptional linearity reduces the need for external filters in various applications, while battery-operated devices benefit from extended sleep times and lower power consumption due to the IEEE 802.11ah standard and Morse Micro’s low-power design expertise. Additionally, the MM6108 introduces a low-power 32-bit RISC-V core-based independent Host Applications Processor (HAP) in select SKUs, facilitating code migration and offering a highly integrated SOC solution for Wi-Fi HaLow applications.

Features

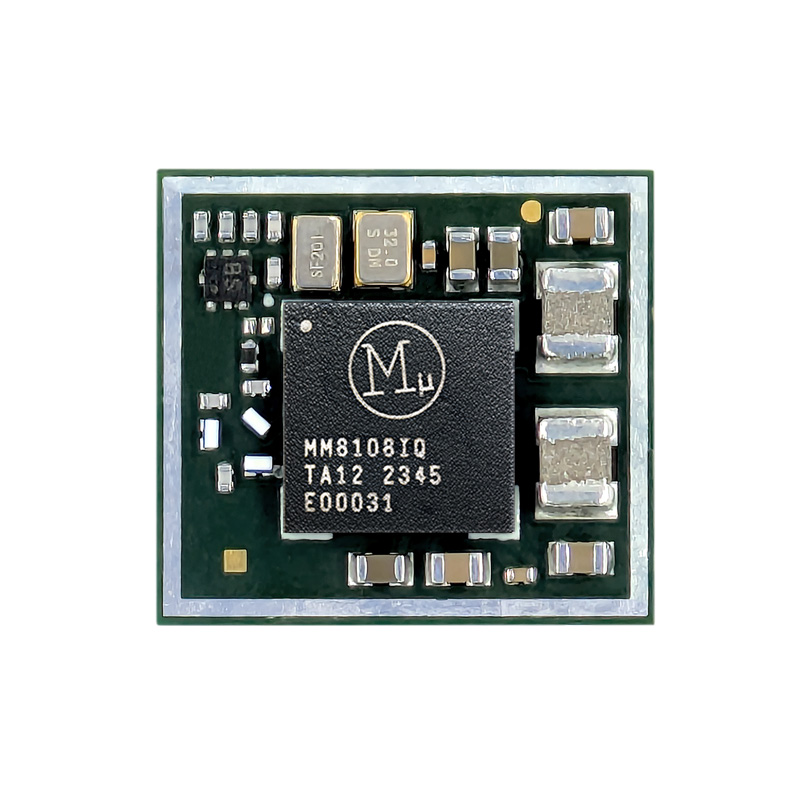

Ultra-long-range, low-power Wi-Fi HaLow module for IoT applications

Radio supporting worldwide sub 1 GHz bands

Single-stream max data rate of 32.5 Mbps

802.11ah OFDM PHY supporting WFA Wi-Fi HaLow certification

802.11ah MAC supporting WFA Wi-Fi HaLow Certification

Power management unit (PMU) supporting ultra-low-power operation

SDIO 2.0 and SPI host interface options

GPIO/UART/I2C/ PWM peripheral options

Wide spectrum of security features including WPA3

1/2/4/8 MHz channel bandwidth

Elevate your IoT applications with Morse Micro’s innovative MM6108 SoC, unlocking the potential of Wi-Fi HaLow connectivity and seamlessly connecting devices across the world with unparalleled performance and efficiency.

CUTTING-EDGE Wi-Fi DEVICE PERFORMANCE

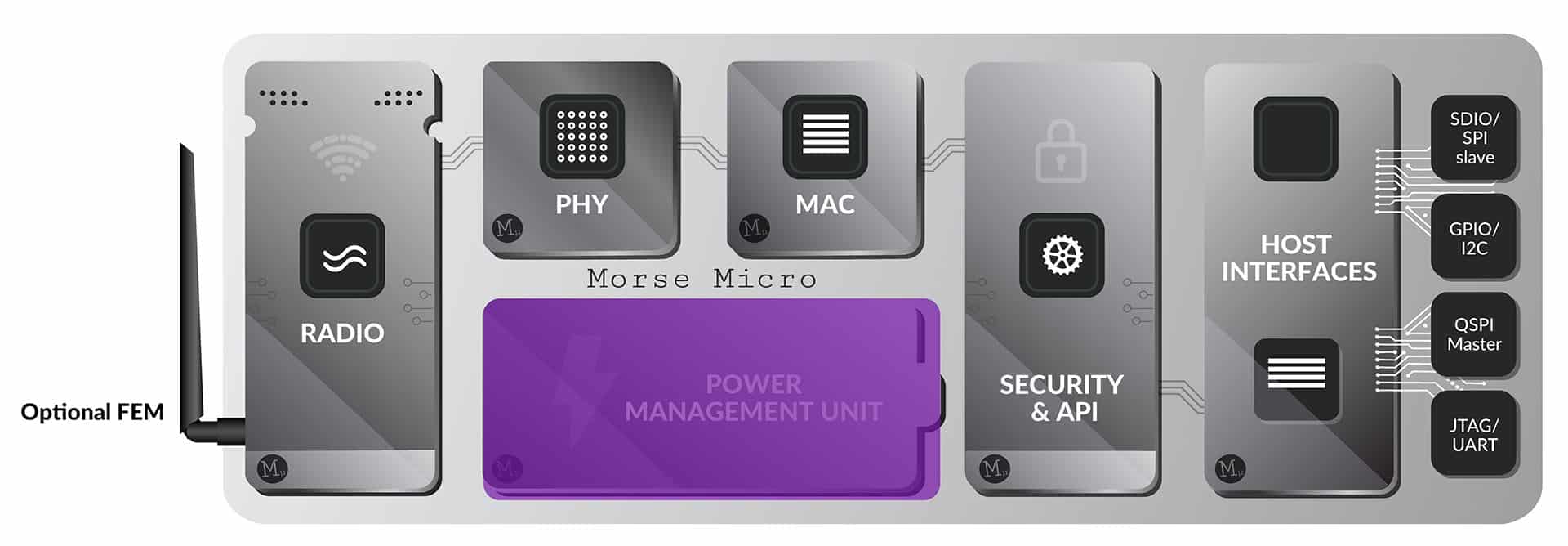

Morse Micro’s 802.11ah Wi-Fi HaLow technology features one of the smallest and lowest-power single-chip solution that incorporates Radio, PHY, and MAC as well as an optional Host Applications Processor, designed in compliance with the sub-1 GHz IEEE 802.11ah standard to power the IoT. It solves the challenges for Wi-Fi in IoT devices, overcoming the fundamental weaknesses of existing wireless technologies offering ultra-low power, longer range, and secure connections at a higher capacity.

IEEE 802.11ah Compliant Radio

Features​

  • Worldwide unlicensed Sub-1 GHz frequency bands
  • Single Chip supporting 850MHz-950MHz
  • Channel width options of 1/2/4/8 MHz
  • Internal PA with option to use external PA/LNA/FEM
  • Superior Linearity
  • High selectivity
  • Low Out-of-band Transmitter noise

Benefits

  • Longer distance, over 1km
  • Lower energy required
  • Better penetration through material
  • Wider selection of data rates vs. other IoT
  • No monthly fees or service provider account required
  • Superior blocker performance
  • Easy co-existence with different radios, e.g. LTE

IEEE 802.11ah Compliant PHY

Features​

  • 802.11ah OFDM PHY
  • BPSK, QPSK and higher QAM Modulations
  • Automatic Frequency & Gain control
  • Robust Error Correction Encoding
  • Supports 1 MHz duplicate mode

Benefits

  • Highest energy efficiency
  • Adjusts to optimal rates for RF conditions
  • Supports longest range and lowest power operation modes
  • Better resilience to interference

IEEE 802.11ah Compliant MAC

Features​

  • Support for Stations (STA) and Access point (AP) Applications
  • Power-Saving Sleep Modes (TWT, RAW, Non-TIM)
  • Support for up to 8,191 Stations per AP
  • BSS Extended Max Idle
  • Hierarchical TIM and Traditional TIM Mode support

Benefits

  • Ultra-Low Power solutions using batteries
  • Very dense IoT networks
  • Star-oriented architecture (no need for mesh)
  • Reduced cost of network infrastructure
  • Better organization of devices by type

Power Management Unit

Features​

  • Integrated DC/DC Converter
  • Wide range of supply voltages
  • Support low power schemes

Benefits

  • Low Total BOM
  • Application design flexibility
  • Ultra-Low Power solutions using batteries
  • Better resilience to interference

IEEE802.11ah Compliant Firmware and Development Kits

Features​

  • Security: Supports WPA3, OWE Enhanced Open, Easy Connect
  • IEEE 802.11ah Standard compliant firmware
  • IPv6 ready
  • Software Development Kit (MM-SDK): API, Firmware, Drivers

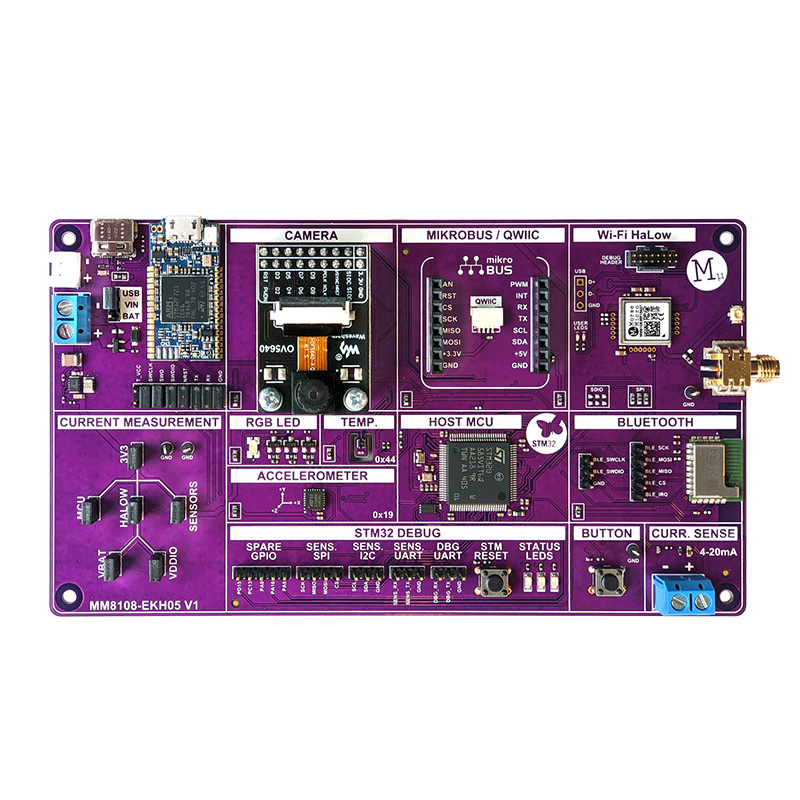

  • Multiple Hardware Reference Design kits

Benefits

  • Highest levels of Wi-Fi encryption
  • Standard AP/Routers
  • No need for proprietary hub or gateway
  • Supports direct access to cloud services
  • Highest Interoperability
  • Short time to market
  • Fast Over the Air (OTA) Firmware updates

Various Host interfaces with optional Application processor

Features​

  • Interfaces for common MCU/CPU connections, programming, and debug e.g. SDIO, SPI, GPIO and JTAG
  • Support for popular applications:

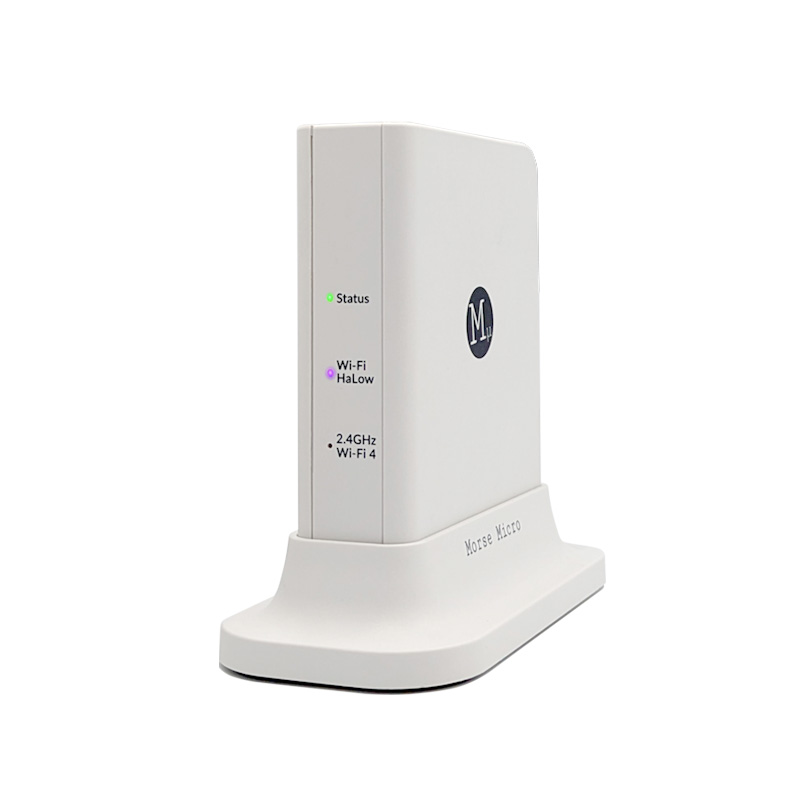

    • Access Point / Router / Set-top Box / Bridge
    • Video Processors
    • Radio cards
    • SOC Sensor
  • Independent Host Applications Processor (HAP) option based on a low power 32b RISC-V core

Benefits

  • Application design flexibility
  • Support wide range of applications
  • Low Total RBOM
  • Simplified application development
  • Simple migration of older platforms to Wi-Fi HaLow

Application

Explore How Morse Micro HaLow SoC Powers the Future of IoT Applications

Enterprise

Building access, Building management systems, Enterprise security cameras, etc.

Industrial

Industrial automation, Warehouse, Transport & logistics, etc.

Infrastructure

Network extension (aka Virtual wire), Mesh APs, Backhaul, Rural networks

Smart Cities

Smart meters, public access, information kiosks, etc.

Smart Home

Security cameras, home automation, garage doors, smart locks.

Wi-Fi HaLow: Long-range Wi-Fi for the IoT

This Masterclass explains how Wi-Fi HaLow is enabling long-range Wi-Fi applications for the IoT.
