An integrated Linux-based Wi-Fi HaLow development platform. Measure raw throughput with iPerf and usable range with a simple ping between two units.
Oerview
The MM6108-EKH01-05US is an integrated Wi-Fi HaLow development platform. This Linux-based platform provides reliable, out-of-the-box wireless connectivity, with fast development times and robust security.

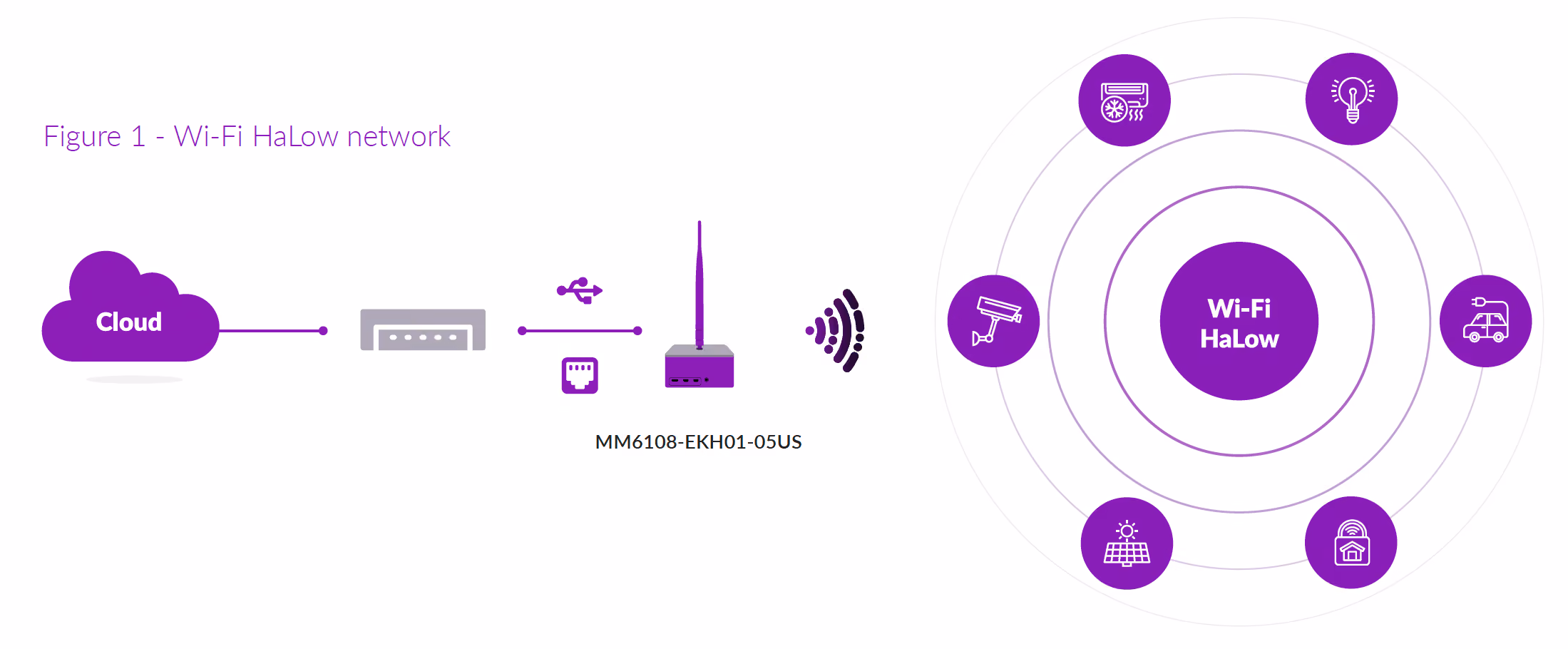

Users can test the functionality of Wi-Fi HaLow in a variety of contexts: raw throughput can be measured with the iPerf tool, while the maximum usable range can be determined with a simple ping between two EKH01 units. Connected via USB-C, USB, or Ethernet, the kit is set up through a standard OpenWrt installable software package, which simplifies the management of Wi-Fi HaLow by making it part of the original network.
What's included:

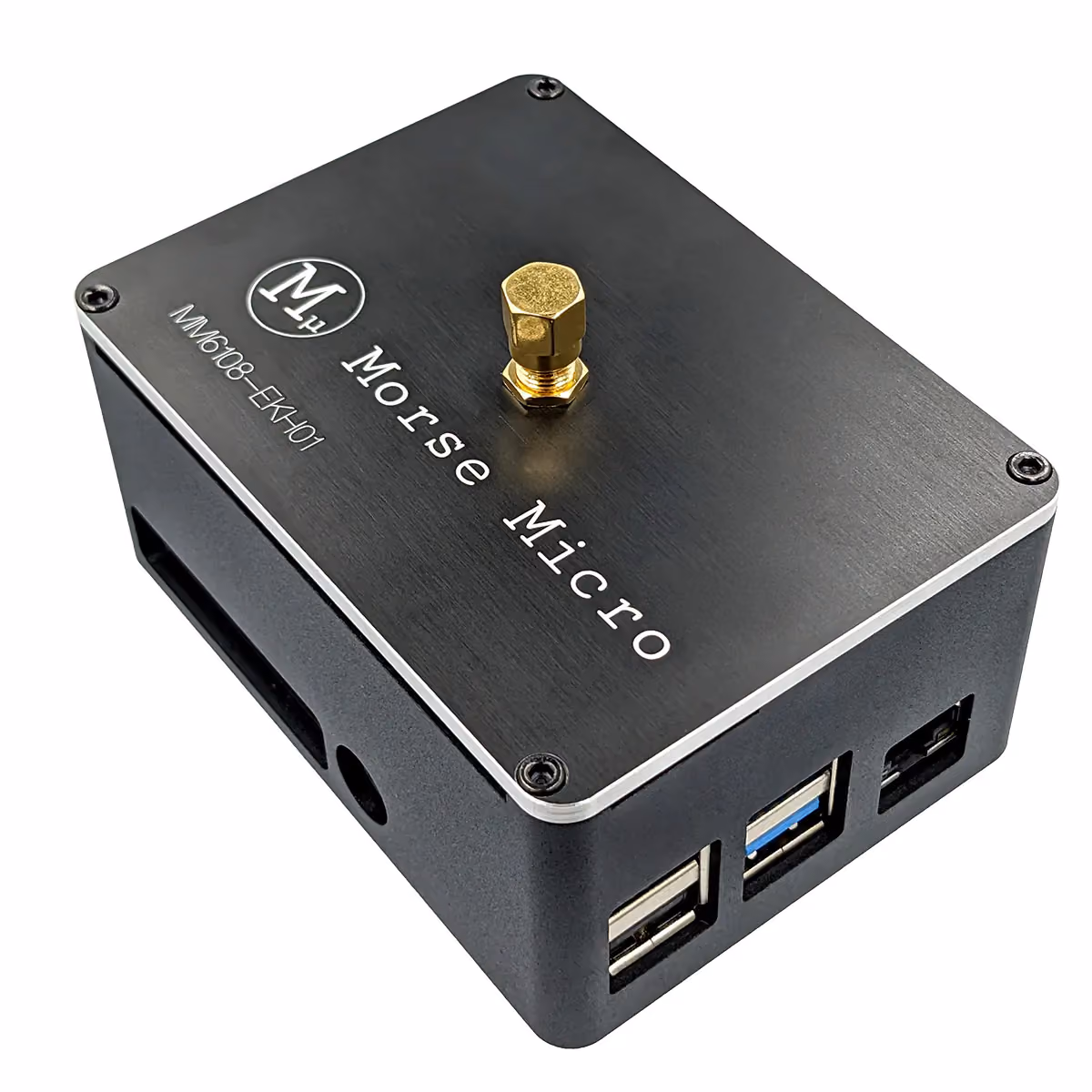

A fully enclosed unit pairing a Morse Micro-developed Wi-Fi HaLow Raspberry Pi 4B HAT (MM6108-EKH06-05US) with a Raspberry Pi 4B, plus an antenna and power supply.
Modulation and coding scheme
| MCS index | Modulation scheme | Coding rate | PHY rate (kbps) per BW | |||
|---|---|---|---|---|---|---|
| 1 MHz | 2 MHz | 4 MHz | 8 MHz | |||
| 10 | BPSK | 1/2x2 | 167 | N/A | ||
| 0 | BPSK | 1/2 | 333 | 722 | 1500 | 3250 |
| 1 | QPSK | 1/2 | 667 | 1444 | 3000 | 6500 |
| 2 | QPSK | 3/4 | 1000 | 2167 | 4500 | 9750 |
| 3 | 16-QAM | 1/2 | 1333 | 2889 | 6000 | 13000 |
| 4 | 16-QAM | 3/4 | 2000 | 4333 | 9000 | 19500 |
| 5 | 64-QAM | 2/3 | 2667 | 5778 | 12000 | 26000 |
| 6 | 64-QAM | 3/4 | 3000 | 6500 | 13500 | 29250 |
| 7 | 64-QAM | 5/6 | 3333 | 7222 | 15000 | 32500 |
