MM6108-EKH01-05US Evaluation Kit
The MM6108-EKH01-05US development platform leverages the power of Linux to provide powerful, out-of-the-box Wi-Fi HaLow® connectivity.
MM6108-EKH01-05US Development Platform

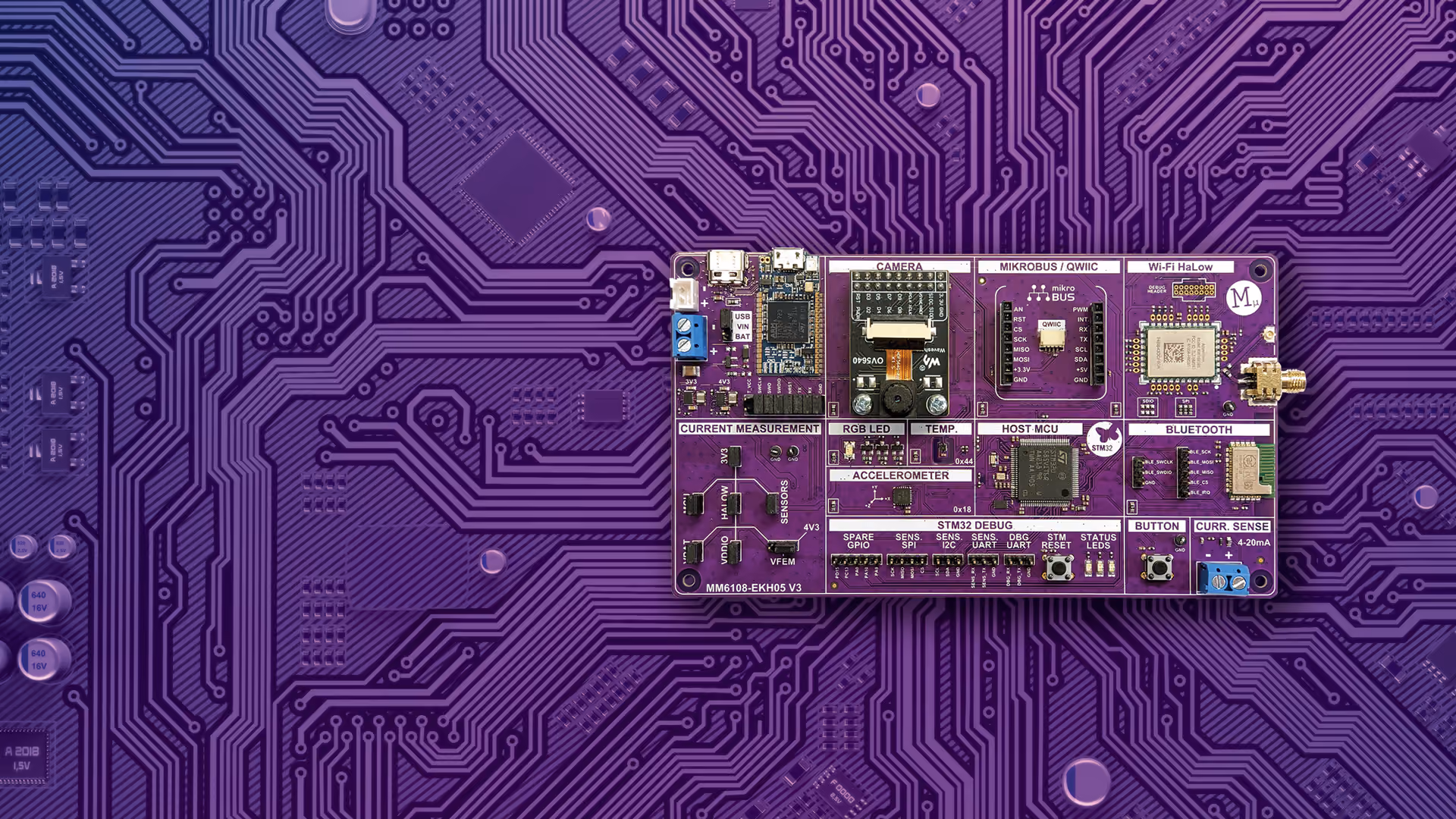

The MM6108-EKH05-05US evaluation kit is a fully integrated Wi-Fi HaLow development platform, designed for a wide range of IoT applications, from smart home devices to industrial automation systems. It features an AzureWave AW-HM593 module built on the Morse Micro MM6108 Wi-Fi HaLow low-power system on chip, alongside the STM32U585 low-power microcontroller and the BlueNRG-M2 Bluetooth system on chip, offering robust wireless connectivity, low power consumption, and an extensive range of programmable interfaces and sensors. Used with a Morse Micro based access point, it enables developers to create almost any Wi-Fi HaLow client project, making it an ideal platform to move quickly from concept to proof of concept. Windows, Linux, and macOS are all supported.

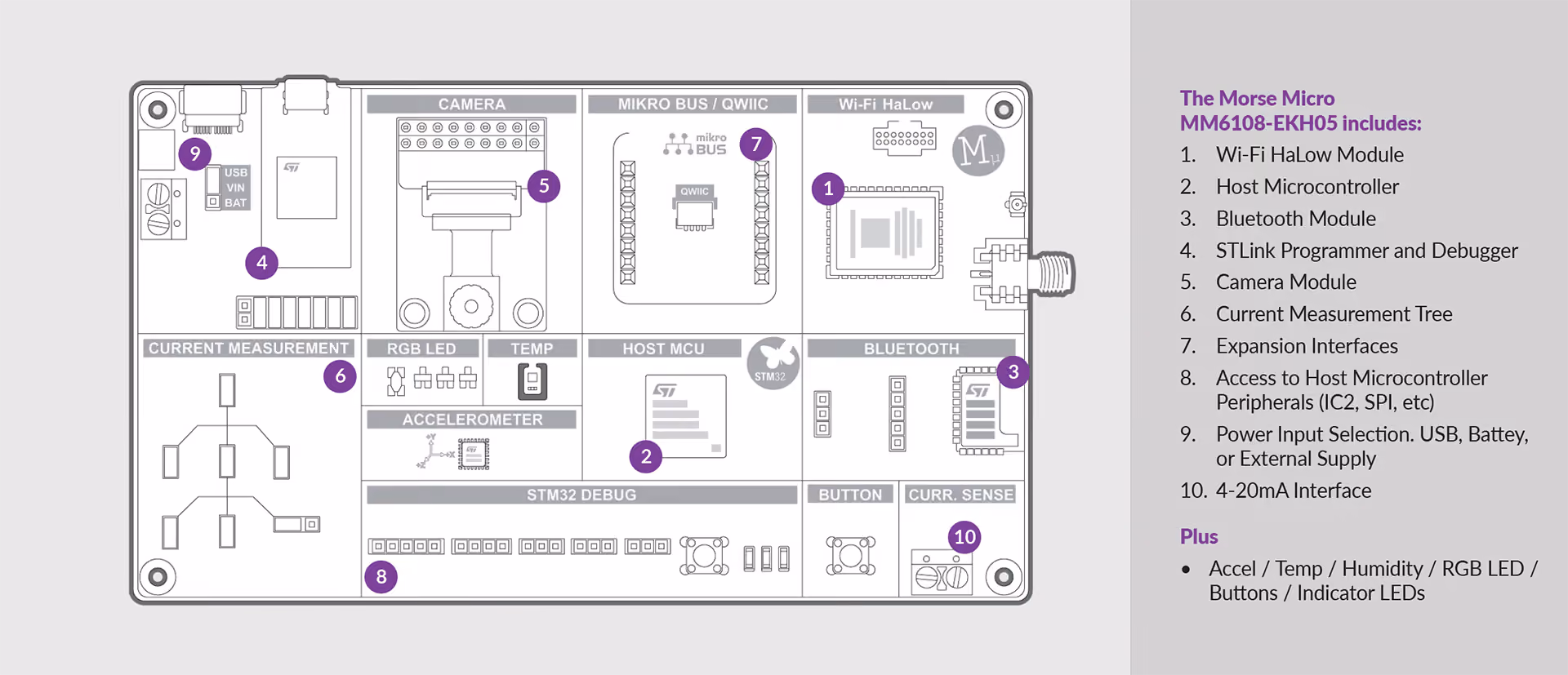

What's included:
An integrated development board with an STM32U585 microcontroller, a built-in STLinkV3 programmer, integrated temperature, humidity, and accelerometer sensors, and support for USB, battery, or external power.
Modulation and coding scheme
| MCS index | Modulation scheme | Coding rate | PHY rate (kbps) per BW | |||
|---|---|---|---|---|---|---|
| 1 MHz | 2 MHz | 4 MHz | 8 MHz | |||
| 10 | BPSK | 1/2x2 | 167 | N/A | ||
| 0 | BPSK | 1/2 | 333 | 722 | 1500 | 3250 |
| 1 | QPSK | 1/2 | 667 | 1444 | 3000 | 6500 |
| 2 | QPSK | 3/4 | 1000 | 2167 | 4500 | 9750 |
| 3 | 16-QAM | 1/2 | 1333 | 2889 | 6000 | 13000 |
| 4 | 16-QAM | 3/4 | 2000 | 4333 | 9000 | 19500 |
| 5 | 64-QAM | 2/3 | 2667 | 5778 | 12000 | 26000 |
| 6 | 64-QAM | 3/4 | 3000 | 6500 | 13500 | 29250 |
| 7 | 64-QAM | 5/6 | 3333 | 7222 | 15000 | 32500 |
