MM8108-RD09

Wi-Fi HaLow connectivity to a range of devices including access points (AP) and station (STA) products.

KEY FEATURES

Overview

The MM8108-RD09 Reference Design provides Wi-Fi HaLow connectivity to a range of devices including access points (AP) and station (STA) products. OpenWRT drivers are available to enable Wi-Fi HaLow functionality on existing routers and APs with a USB interface. For client devices, Windows and Linux drivers are available, as well as a MacOS application, which allows for users to easily connect to Wi-Fi HaLow networks, the same as one would for traditional Wi-Fi networks.

What's included:

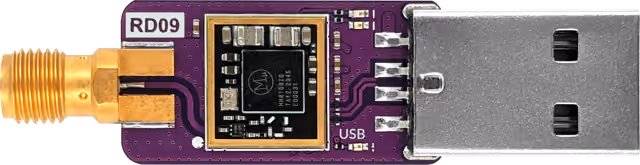

A fully enclosed Wi-Fi HaLow USB dongle, plus reference design schematics and software.

802.11ah compliant OFDM PHY supporting MCS0-10

Single-stream max PHY rate of 43.33 Mbps at 8MHz with 256-QAM

Integrated PA with 35% efficiency at the maximum 26 dBm (400 mW) output power

Configurable as an Access Point or a Station

1/2/4/8 MHz channel bandwidth in the sub-1 GHz licence-exempt bands worldwide

Support for Linux, OpenWrt, Mac OSx and Windows

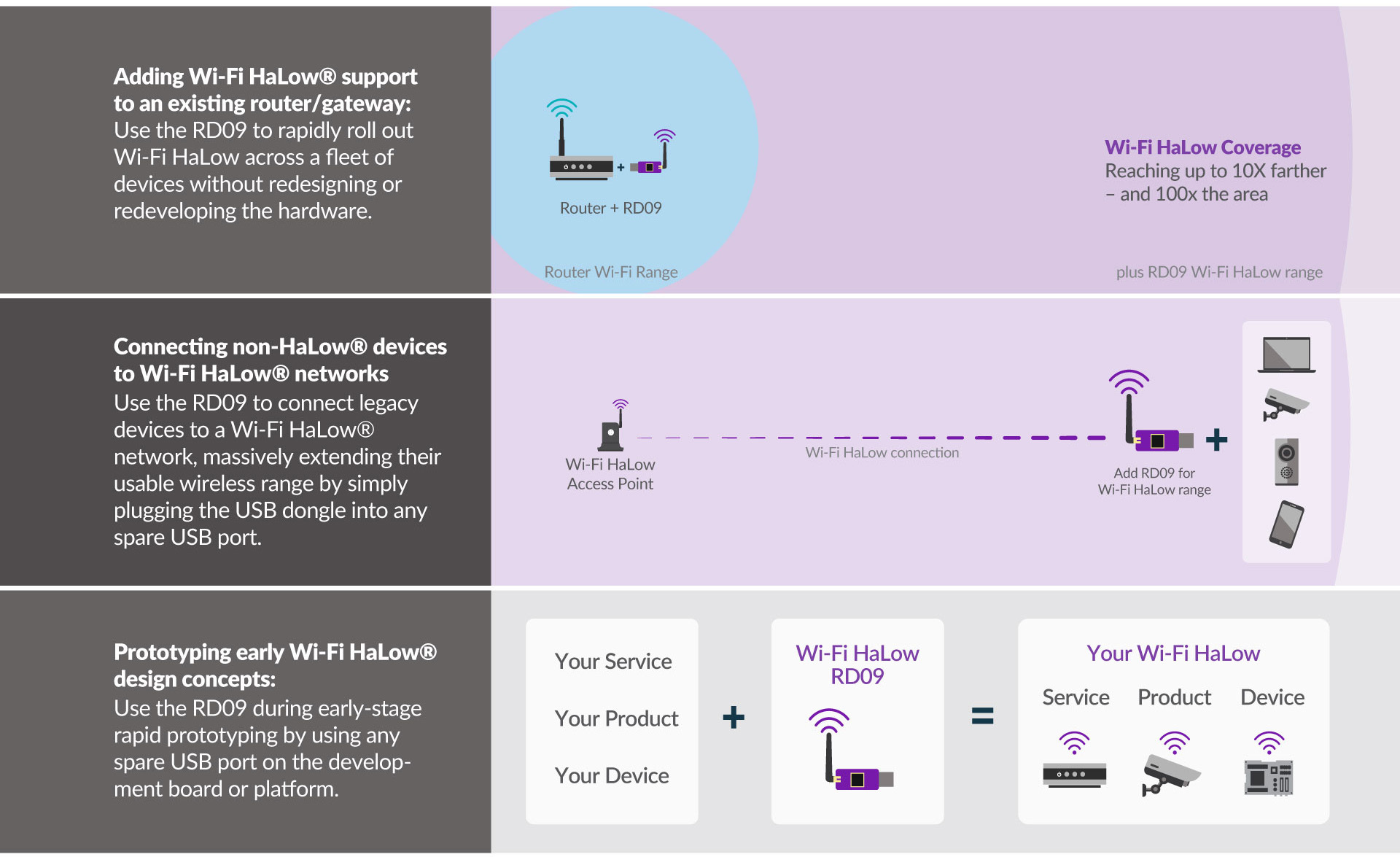

MM8108-RD09 use cases

From adding Wi-Fi HaLow to existing routers and gateways to prototyping early Wi-Fi HaLow design concepts.

Resources

Digital resources, support, and everything you need to get started.

Design package

RD09 (Part of MM8108-EKH19) Reference Design Package

Full USB dongle reference design for Morse Micro’s Wi-Fi HaLow, based on the MM8108 chipset.

Documentation

Morse Micro Documentation

Morse Micro documentation platform, view datasheets, application notes, software releases and more.

Community

Morse Micro Community

Morse Micro community, ask and answer questions with those who are building with Wi-Fi HaLow.

GitHub

Morse Micro GitHub

Morse Micro open source software community. Stay in the loop for all software updates and releases.
